Succinic Acid

This article is compiled based on the United States Pharmacopeia (USP) – 2025 Edition

Issued and maintained by the United States Pharmacopeial Convention (USP)

DOWNLOAD PDF HERE

To view the Notice from the Expert Committee that posted in conjunction with this accelerated revision, please click www.uspnf.com/rb-succinic-acid-20240531.

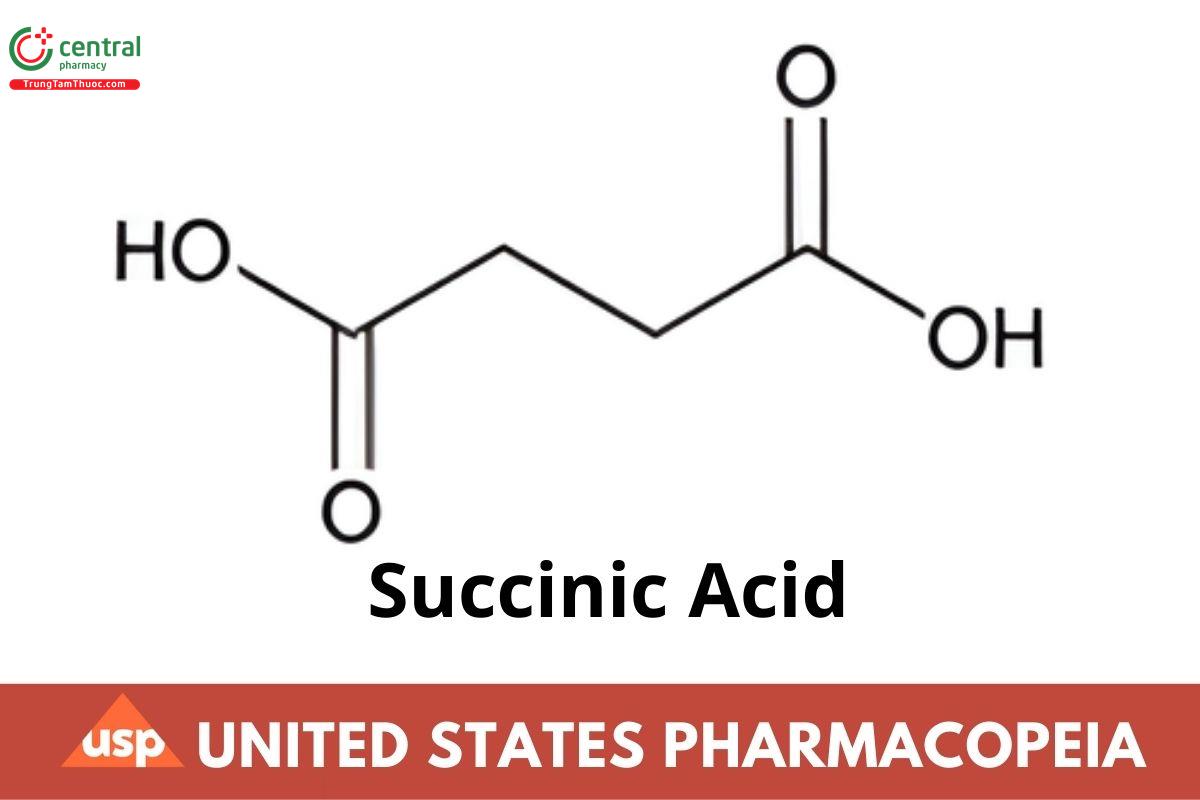

C₄H₆O₄ 118.09

Butanedioic acid CAS RN®: 110-15-6.

Change to read:

1 DEFINITION

Succinic Acid contains NLT 98.0% and NMT 102.0% (RB 1-Jun-2024) of succinic acid (C₄H₆O₄ ).

2 IDENTIFICATION

A. Spectroscopic Identification Tests 〈197〉, Infrared Spectroscopy: 197K

B. Chromatographic Identity

The retention time of the major peak of the Sample solution corresponds to that of the Standard solution, as obtained in the Assay.

3 ASSAY

Change to read:

Procedure

Diluent: Dissolve 6.8 g of potassium phosphate, monobasic in 2 L of water. Adjust the pH of the solution to 2.3 with drops of phosphoric acid.

This solution is 25 mM potassium phosphate buffer, pH 2.3.

Mobile phase: Methanol and Diluent (8:92)

System suitability solution: 1.0 mg/mL of USP Succinic Acid RS and 0.003 mg/mL of USP Fumaric Acid RS in Diluent

Standard solution: 1.0 mg/mL of USP Succinic Acid RS in Diluent

Sample solution: 1.0 mg/mL of Succinic Acid in Diluent

Chromatographic system

(See Chromatography 〈621〉, System Suitability.)

Mode: LC

Detector: UV 204 nm

Column: 4.6-mm × 15-cm; 3-μm packing L1

Flow rate: 1.0 mL/min

Injection volume: 20 μL

System suitability

Sample: System suitability solution

[Note—The relative retention times for succinic acid and fumaric acid are 1.0 and 1.2, respectively.]

Suitability requirements

Resolution: NLT 2.0 between succinic acid and fumaric acid

Relative standard deviation: NMT 0.5% for the succinic acid peak

Tailing factor: 0.8–2.0

Analysis

Samples: Standard solution and Sample solution

Calculate the percentage of succinic acid (C₄H₆O₄ ) in the portion of Succinic Acid (RB 1-Jun-2024) taken:

Result = (r_U/r_S ) × (C_S /C_U ) × 100

r_U = peak response from the Sample solution

r_S = peak response from the Standard solution

C_S = concentration of USP Succinic Acid RS in the Standard solution (mg/mL)

C_U = concentration of Succinic Acid in the Sample solution (mg/mL)

Acceptance criteria: 98.0%–102.0% (RB 1-Jun-2024)

4 IMPURITIES

Residue on Ignition 〈281〉: NMT 0.025%

5 SPECIFIC TESTS

Melting Range or Temperature 〈741〉: 185.0°–190.0°

6 ADDITIONAL REQUIREMENTS

Packaging and Storage: Preserve in a well-closed container. No storage requirements specified.

USP Reference Standards 〈11〉

USP Fumaric Acid RS

USP Succinic Acid RS
