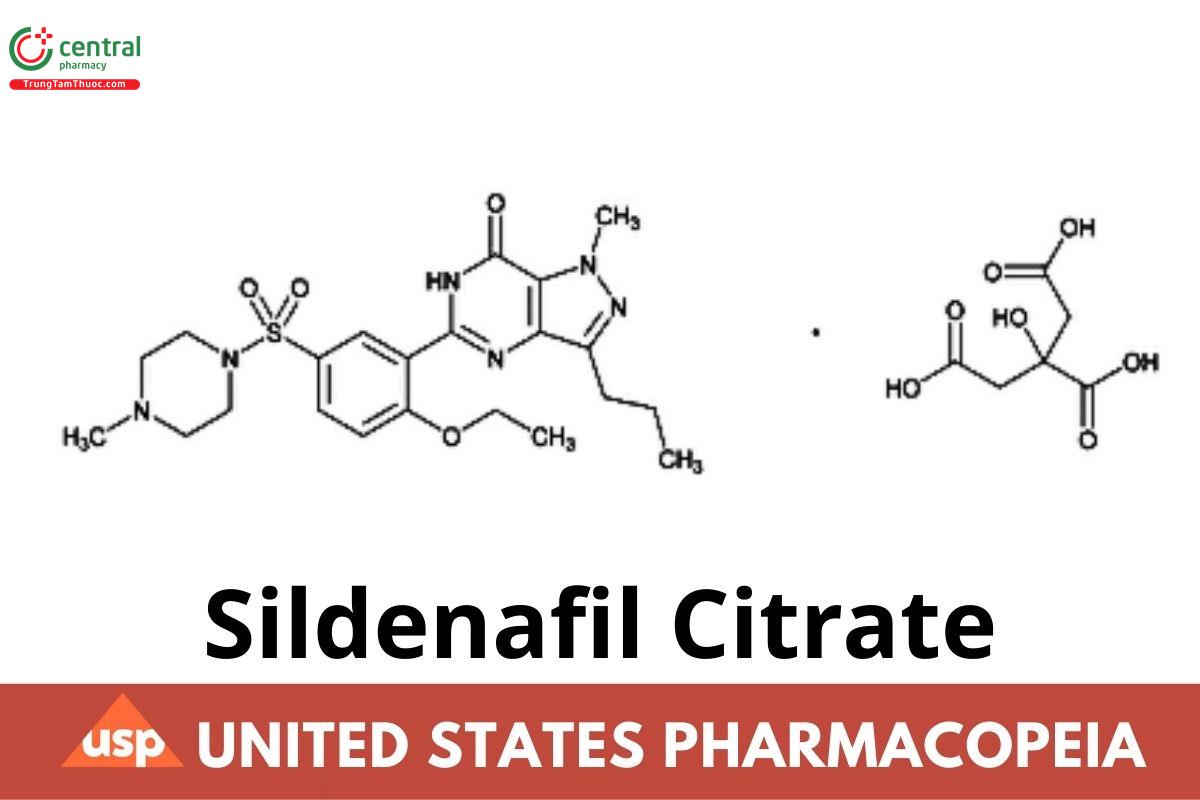

Sildenafil Citrate

This article is compiled based on the United States Pharmacopeia (USP) – 2025 Edition

Issued and maintained by the United States Pharmacopeial Convention (USP)

DOWNLOAD PDF HERE

C₂₂H₃₀N₆O₄S .C₆H₈O₇ 666.70

Piperazine, 1-[[3-(6,7-dihydro-1-methyl-7-oxo-3-propyl-1H-pyrazolo[4,3-d]pyrimidin-5-yl)-4-ethoxyphenyl]sulfonyl]-4-methyl-, 2-hydroxy-1,2,3- propanetricarboxylate (1:1);

1-[[3-(6,7-Dihydro-1-methyl-7-oxo-3-propyl-1H-pyrazolo[4,3-d]pyrimidin-5-yl)-4-ethoxyphenyl]sulfonyl]-4-methylpiperazine citrate (1:1)

RN®: 171599-83-0; UNII: BW9B0ZE037.

Sildenafil

C₂₂H₃₀N₆O₄S  474.58 CAS RN®: 139755-83-2; UNII: 3M7OB98Y7H.

1 DEFINITION

Sildenafil Citrate contains NLT 98.0% and NMT 102.0% of Sildenafil citrate (C₂₂H₃₀N₆O₄S .C₆H₈O₇), calculated on the anhydrous and solvent-free basis.

2 IDENTIFICATION

Change to read:

A. Spectroscopic Identification Tests 〈197〉, Infrared Spectroscopy: 197K (CN 1-May-2020)

3 ASSAY

Procedure

Buffer: Dilute 7 mL of triethylamine with water to 1 L. Stir, and adjust with phosphoric acid to a pH of 3.0 ± 0.1.

Mobile phase: Buffer, methanol, and acetonitrile (58:25:17)

Standard solution: 0.028 mg/mL of USP Sildenafil Citrate RS in Mobile phase

Sample solution: 0.028 mg/mL of Sildenafil Citrate in Mobile phase

Chromatographic system

(See Chromatography 〈621〉, System Suitability.)

Mode: LC

Detector: UV 290 nm

Column: 3.9-mm × 15-cm; 5-µm packing L1

Column temperature: 30°

Flow rate: 1 mL/min

Injection size: 20 µL

System suitability

Sample: Standard solution

Suitability requirements

Tailing factor: NMT 1.5

Relative standard deviation: NMT 0.85% for six replicate injections

Analysis

Samples: Standard solution and Sample solution

Calculate the percentage of Sildenafil citrate (C₂₂H₃₀N₆O₄S .C₆H₈O₇) in the portion of the sample taken:

Result = (r_U/r_S) × (C_S/C_U) × 100

r_U = peak response of Sildenafil from the Sample solution

r_S = peak response of Sildenafil from the Standard solution

C_S = concentration of the Standard solution (mg/mL)

C_U = concentration of the Sample solution (mg/mL)

Acceptance criteria: 98.0%–102.0% on the anhydrous and solvent-free basis

4 IMPURITIES

Residue on Ignition 〈281〉

Sample: NLT 0.5 g

Acceptance criteria: NMT 0.1%

Limit of Imidazole

Diluent: Methanol, water, and ammonium hydroxide (15:5:1)

Standard solution 1: 0.035 mg/mL of USP Imidazole RS in Diluent

Standard solution 2: 0.0175 mg/mL of USP Imidazole RS in Diluent from Standard solution 1 Sample solution: 17.5 mg/mL of Sildenafil Citrate in Diluent

System suitability solution: Mix equal volumes of Sample solution and Standard solution 1. Chromatographic system

(See Chromatography 〈621〉, Thin-Layer Chromatography.)

Mode: TLC

Adsorbent: 0.2-mm layer of chromatographic silica gel mixture with a particle size of 2–10 µm (HPTLC plates) Application volume: 10 µL. [Note—Apply as 6-mm bands.]

Developing solvent system: Methylene chloride, ethyl acetate, alcohol, and ammonium hydroxide (50:30:20:1) System suitability

Sample: System suitability solution

Suitability requirements: The chromatogram shows two clearly separated zones.

Analysis:

Samples: Standard solution 2 and Sample solution

Develop the plate over a distance of about two-thirds of the length of the plate. Dry at 100° for about 15 min, and cool. Expose the plate to iodine vapor until the plate is light brown, and examine the plate under UV light at 254 nm. [Note—The retardation factors for citrate, imidazole, and Sildenafil are about 0, 0.25, and 0.4, respectively.]

Acceptance criteria: Any spot corresponding to imidazole in the Sample solution is not more intense than the principal spot from Standard solution 2 (0.1%).

Organic Impurities

Buffer, Mobile phase, and Chromatographic system: Proceed as directed in the Assay, except to run the chromatograph for 3 times the retention time of Sildenafil.

Identification solution: 7.5 µg/mL of USP Sildenafil Related Compound A RS in Mobile phase

System suitability solution: Dissolve 70 mg of Sildenafil Citrate in 1 mL of a solution of Hydrogen peroxide and anhydrous formic acid (2:1). Allow to stand for at least 10 min to generate Sildenafil N-oxide, and then dilute with Mobile phase to 250 mL. Sample solution: 0.7 mg/mL of Sildenafil Citrate in Mobile phase

Diluted sample solution: 1.4 µg/mL of Sildenafil citrate in Mobile phase from the Sample solution

Sensitivity solution: 0.35 µg/mL of Sildenafil citrate in Mobile phase from the Diluted sample solution

System suitability

Samples: Diluted sample solution, Sensitivity solution, and System suitability solution

[Note—The relative retention times for Sildenafil, Sildenafil N-oxide, and Sildenafil related compound A are about 1.0, 1.2, and 1.7, respectively.]

Suitability requirements

Resolution: NLT 2.5 between Sildenafil N-oxide and Sildenafil, System suitability solution

Tailing factor: NMT 1.5 for the Sildenafil peak, Diluted sample solution

Signal-to-noise ratio: NLT 10, Sensitivity solution

Analysis

Samples: Identification solution, Diluted sample solution, and Sample solution

[Note—Identify Sildenafil related compound A from the Identification solution.]

Calculate the percentage of Sildenafil related compound A and any other unspecified individual impurity in the portion of Sildenafil Citrate taken:

Result = (r_U/r_S) × (C_S/C_U) × 100

r_U = peak response of Sildenafil related compound A or any other unspecified impurity from the Sample solution

r_S = peak response of Sildenafil from the Diluted sample solution

C_S = concentration of the Diluted sample solution (mg/mL)

C_U = concentration of the Sample solution (mg/mL)

Acceptance criteria

Sildenafil related compound A: NMT 0.3%

Any other unspecified individual impurity: NMT 0.10%

Total unspecified impurities: NMT 0.3%

Total impurities: NMT 0.5%. Disregard any peak less than 0.05%.

5 SPECIFIC TESTS

Water Determination, Method I〈921〉: NMT 2.5%

6 ADDITIONAL REQUIREMENTS

Packaging and Storage: Preserve in air-tight containers, and store at room temperature.

Change to read:

USP Reference Standards 〈11〉

USP Imidazole RS C₃H₄N₂ 68.08

USP Sildenafil Citrate RS

USP Sildenafil Related Compound A RS

5-[2-Ethoxy-5-[(4-methylpiperazin-1-yl)sulfonyl]phenyl]-1-methyl-3-(2-methylpropyl)-1,6-dihydro-7H-pyrazolo[4,3-d]pyrimidin-7-one; Also known as 1-{[3-(6,7-Dihydro-1-methyl-7-oxo-3-isobutyl-1H-pyrazolo[4,3-d]pyrimidin-5-yl)-4-ethoxyphenyl]sulfonyl}-4-methylpiperazine. C₂₃H₃₂N₆O₄S 488.61
