Scopolamine Hydrobromide

This article is compiled based on the United States Pharmacopeia (USP) – 2025 Edition

Issued and maintained by the United States Pharmacopeial Convention (USP)

DOWNLOAD PDF HERE

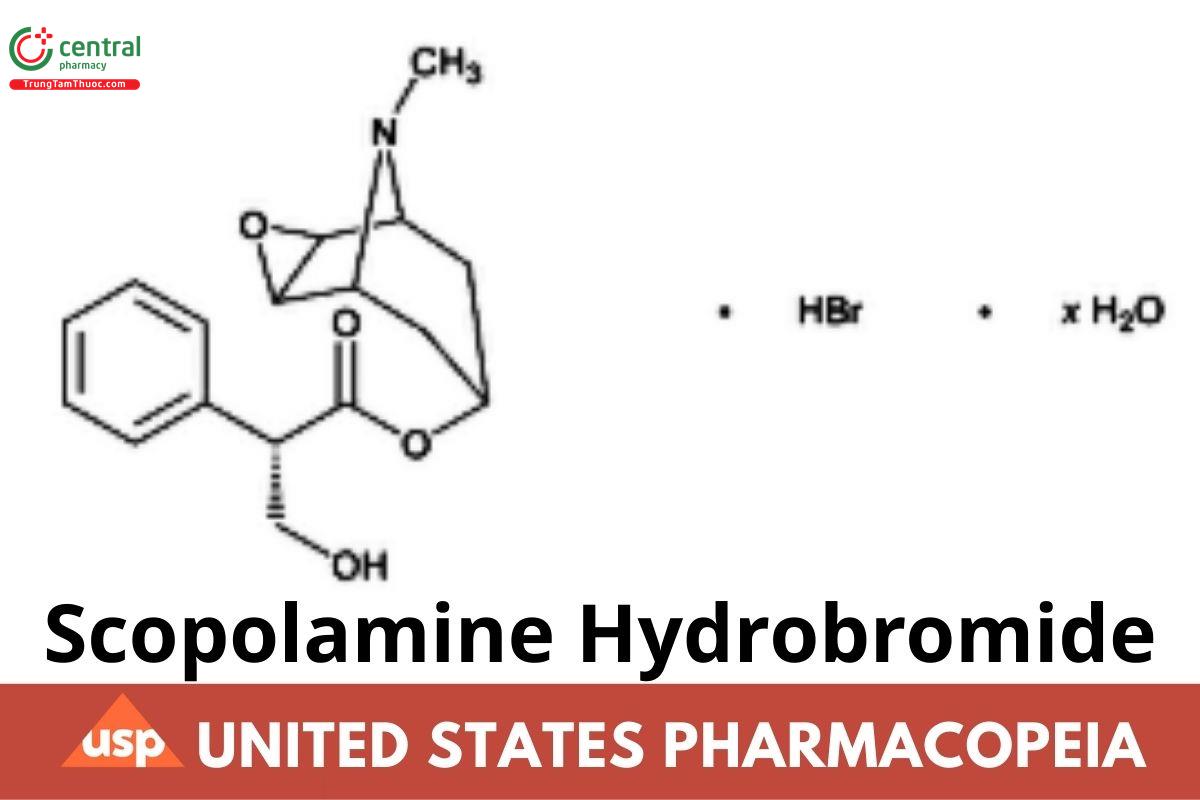

C₁₇H₂₁NO₄ .HBr. xH₂O

Benzeneacetic acid, α-(hydroxymethyl)-, 9-methyl-3-oxa-9-azatricyclo[3.3.1.0.2,4]non-7-yl ester, hydrobromide,hydrate, (USP 1-Dec-2021) [7(S)- (1α,2β,4β,5α,7β)]-;

6β,7β-Epoxy-1αH,5αH-tropan-3α-ol (−)-tropate (ester) hydrobromidehydrate;

(1R,2R,4S,5S,7s)-9-Methyl-3-oxa-9-azatricyclo[3.3.1.0.2,4]nonan-7-yl (S)-3-hydroxy-2-phenylpropanoate hydrobromide hydrate (USP 1-Dec-2021) Anhydrous 384.27 CAS RN®: 114-49-8; UNII: R3K67DRL3J.

1 DEFINITION

Scopolamine Hydrobromide contains NLT 98.0% and NMT 102.0% of scopolamine hydrobromide (C₁₇H₂₁NO₄ .HBr), calculated on the anhydrous basis.

[Caution—Handle scopolamine hydrobromide with exceptional care, because it is highly potent.]

2 IDENTIFICATION

Change to read:

A.Spectroscopic Identification Tests 〈197〉, Infrared Spectroscopy: 197K

Sample: (USP 1-Dec-2021) Dissolve 3 mg in 1 mL of alcohol, and evaporate the solution on a steam bath to dryness. Dissolve the residue in 0.5 mL of chloroform, add 200 mg of potassium bromide previously dried at 105° for 30 min, and stir frequently for 5 min. Allow the chloroform to evaporate to dryness, and stir frequently to obtain a owing powder residue. Dry the residue as directed in the test for Water Determination, (USP 1-Dec-2021) and then immediately compress the residue to a disk.

Standard solution: Proceed as directed in the Sample using USP Scopolamine Hydrobromide RS. (USP 1-Dec-2021) Acceptance criteria: Meets the requirements

A. Sample solution: 50 mg/mL of Scopolamine Hydrobromide in water

Analysis: To 1 mL of the Sample solution add a few drops of chlorine TS, and shake the mixture with 1 mL of chloroform. Acceptance criteria: A brownish color forms in the chloroform layer.

B. The retention time of the scopolamine peak of the Sample solution corresponds to that of the Standard solution, as obtained in the Assay.

3 ASSAY

Procedure

Buffer solution: 7.0 g/L of monobasic potassium phosphate in water. Adjust with 0.05 M phosphoric acid to a pH of 3.3. Solution A: Dissolve 3.5 g of sodium dodecyl sulfate in 606 mL of Buffer solution. Add 320 mL of acetonitrile and mix. Solution B: Acetonitrile

Mobile phase: See Table 1.

Table 1

Standard solution: 0.2 mg/mL of USP Scopolamine Hydrobromide RS in Solution A

Sample solution: 0.2 mg/mL of Scopolamine Hydrobromide in Solution A

Chromatographic system

(See Chromatography 〈621〉, System Suitability.)

Mode: LC

Detector: UV 210 nm

Column: 4.6-mm × 10-cm; 3-µm packing L1

Flow rate: 1 mL/min

Injection volume: 10 µL

System suitability

Sample: Standard solution

Suitability requirements

Tailing factor: NMT 2.0

Relative standard deviation: NMT 0.73%

Analysis

Samples: Standard solution and Sample solution

Calculate the percentage of scopolamine hydrobromide (C₁₇H₂₁NO₄ . HBr) in the portion of Scopolamine Hydrobromide taken:

Result = (r_U/r_S) × (C_S/C_U) × 100

r_U = peak response of scopolamine from the Sample solution

r_S = peak response of scopolamine from the Standard solution

C_S = concentration of USP Scopolamine Hydrobromide RS in the Standard solution (mg/mL)

C_U = concentration of Scopolamine Hydrobromide in the Sample solution (mg/mL)

Acceptance criteria: 98.0%–102.0% on the anhydrous basis

4 IMPURITIES

Residue on Ignition 〈281〉

Sample: 1 g

Acceptance criteria: NMT 0.1%

Organic Impurities

Buffer solution, Solution A, Solution B, Mobile phase, and Chromatographic system: Proceed as directed in the Assay. System suitability solution: 0.2 mg/mL of USP Scopolamine Hydrobromide RS and 0.001 mg/mL of USP Norscopolamine RS in Solution A Standard solution: 0.002 mg/mL of USP Scopolamine Hydrobromide RS in Solution A

Sample solution: 2.0 mg/mL of Scopolamine Hydrobromide in Solution A

System suitability

Samples: System suitability solution and Standard solution

Suitability requirements

Resolution: NLT 2.0 between the norscopolamine and scopolamine peaks, System suitability solution

Relative standard deviation: NMT 5.0%, Standard solution

Analysis

Samples: Standard solution and Sample solution

Calculate the percentage of each individual impurity in the portion of Scopolamine Hydrobromide taken:

Result = (r_U/r_S) × (C_S/C_U) × (1/F) × 100

r_U = peak response of any individual impurity from the Sample solution

r_S = peak response of scopolamine from the Standard solution

C_S = concentration of USP Scopolamine Hydrobromide RS in the Standard solution (mg/mL)

C_U = concentration of Scopolamine Hydrobromide in the Sample solution (mg/mL)

F = relative response factor (see Table 2)

Acceptance criteria: See Table 2. The reporting threshold is 0.05%. Disregard any peak due to the bromide ion at a relative retention time of 0.1 that appears close to the solvent peak.

Table 2

a 3-Hydroxy-2-phenylpropanoic acid.

b (1R,3r,5S)-8-Methyl-8-azabicyclo[3.2.1]octan-3-yl (S)-3-hydroxy-2-phenylpropanoate.

c (1R,2R,4S,5S,7s)-9-Methyl-3-oxa-9-azatricyclo[3.3.1.02,4]nonan-7-yl 2-phenylacrylate.

d (1R,3r,5S)-8-Methyl-8-azabicyclo[3.2.1]octan-3-yl 2-phenylacrylate.

5 SPECIFIC TESTS

Optical Rotation 〈781S〉, Procedures, Specific Rotation

Sample solution: 50 mg/mL of anhydrous Scopolamine Hydrobromide in water

Acceptance criteria: −24° to −26°

pH 〈791〉

Sample solution: 50 mg/mL of Scopolamine Hydrobromide in water

Acceptance criteria: 4.0–5.5

Water Determination 〈921〉, Method III

Analysis: Dry in two stages (see Loss on Drying 〈731〉): first at 80° for 2 h, and then at 105° for an additional 3 h.

Acceptance criteria: NMT 13.0%

6 ADDITIONAL REQUIREMENTS

Packaging and Storage: Preserve in tight, light-resistant containers.

USP Reference Standards 〈11〉

USP Norscopolamine RS

(1R,2R,4S,5S,7s)-3-Oxa-9-azatricyclo[3.3.1.02,4]nonan-7-yl (S)-3-hydroxy-2-phenylpropanoate.

C₁₆H₁₉NO₄ 289.33

USP Scopolamine Hydrobromide RS
