Prochlorperazine Maleate

This article is compiled based on the United States Pharmacopeia (USP) – 2025 Edition

Issued and maintained by the United States Pharmacopeial Convention (USP)

DOWNLOAD PDF HERE

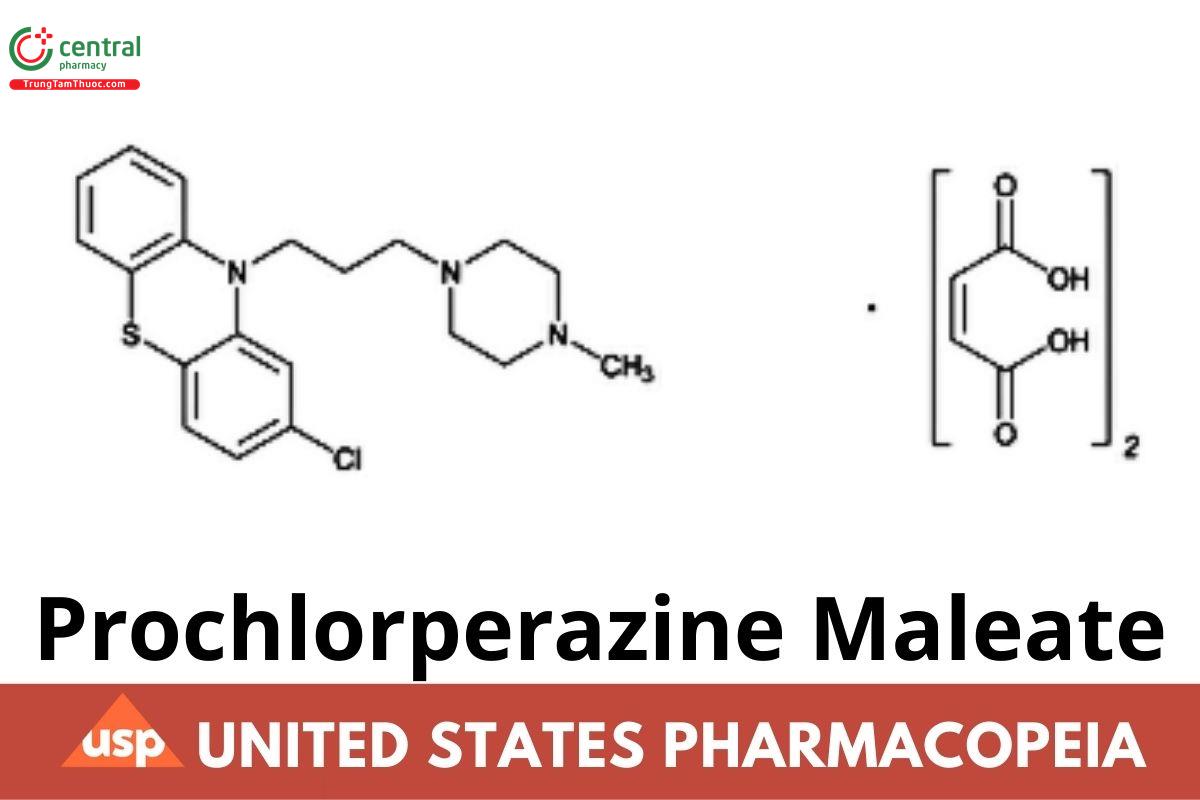

C₂₀H₂₄ClN₃S₄· 2C₄H₄O 606.09

10H-Phenothiazine, 2-chloro-10-[3-(4-methyl-1-piperazinyl)propyl]-, (Z)-2-butenedioate (1:2);

2-Chloro-10-[3-(4-methylpiperazin-1-yl)propyl]phenothiazine maleate (1:2) CAS RN®: 84-02-6; UNII: I1T8O1JTL6.

1 DEFINITION

Prochlorperazine Maleate contains NLT 98.0% and NMT 102.0% of prochlorperazine maleate (C₂₀H₂₄ClN₃S₄· 2C₄H₄O), calculated on the dried basis.

[Note—Throughout the following procedures, protect the samples, the Reference Standard, and solutions containing them from light, and conduct the procedures without delay.]

2 IDENTIFICATION

Change to read:

A. Spectroscopic Identification Tests 〈197〉, Infrared Spectroscopy: 197A or 197K.

B. The retention time of the major peak of the Sample solution corresponds to that of the Standard solution, as obtained in the Assay.

3 ASSAY

Procedure

Ion-pairing solution: Dissolve 4.33 g of sodium 1-octanesulfonate in 500 mL of water. Add 4.0 mL of glacial acetic acid, and dilute with water to 1 L.

Mobile phase: Acetonitrile, methanol, and Ion-pairing solution (40:15:45)

Standard solution: 0.2 mg/mL of USP Prochlorperazine Maleate RS in Mobile phase. Sonicate to dissolve, if needed, prior to nal dilution. Sample solution: 0.2 mg/mL of Prochlorperazine Maleate in Mobile phase. Sonicate to dissolve, if needed, prior to nal dilution. Chromatographic system

(See Chromatography 〈621〉, System Suitability.)

Mode: LC

Detector: UV 254 nm

Column: 3.9-mm × 30-cm; 10-µm packing L1 or 4.6-mm × 25-cm; 5-µm packing L1

Flow rate: 2 mL/min

Injection volume: 10 µL

System suitability

Sample: Standard solution

Suitability requirements

Tailing factor: NMT 2.0

Relative standard deviation: NMT 0.73%

Analysis

Samples: Standard solution and Sample solution

Calculate the percentage of prochlorperazine maleate (C₂₀H₂₄ClN₃S₄· 2C₄H₄O) in the portion of Prochlorperazine Maleate taken:

Result = (r_U/r_S) × (C_S/C_U) × 100

r_U = peak response of prochlorperazinefrom the Sample solution

r_S = peak response of prochlorperazine from the Standard solution

C_S = concentration of USP Prochlorperazine Maleate RS in the Standard solution (mg/mL)

C_U = concentration of Prochlorperazine Maleate in the Sample solution (mg/mL)

 Acceptance criteria: 98.0%–102.0% on the dried basis

4 IMPURITIES

Residue on Ignition 〈281〉: NMT 0.1%

Organic Impurities

Buffer: 1.36 g/L of sodium acetate trihydrate in water (0.01 M). Add 2.0 mL of triethylamine and 6.0 mL of glacial acetic acid per L of solution.

Solution A: Buffer

Solution B: Acetonitrile

Mobile phase: See Table 1. Return to original conditions, and re-equilibrate the system for about 10 min.

Table 1

Diluent: Acetonitrile and water (40:60)

Impurity stock solution: 0.16 mg/mL of USP Prochlorperazine Related Compound A RS in Diluent

Standard stock solution: 0.16 mg/mL of USP Prochlorperazine Maleate RS in Diluent

System suitability solution: 1.6 µg/mL each of USP Prochlorperazine Maleate RS and USP Prochlorperazine Related Compound A RS in Diluent from the Standard stock solution and the Impurity stock solution, respectively

Standard solution: 6.4 µg/mL of USP Prochlorperazine Maleate RS in Diluent from the Standard stock solution

Sensitivity solution: 0.32 µg/mL of USP Prochlorperazine Maleate RS in Diluent from the Standard solution

Sample solution: 0.64 mg/mL of Prochlorperazine Maleate in Diluent

Chromatographic system

(See Chromatography 〈621〉, System Suitability.)

Mode: LC

Detector: UV 254 nm

Column: 4.6-mm × 25-cm; 5-µm packing L1

Column temperature: 50 ± 5°

Flow rate: 2.0 mL/min

Injection volume: 20 µL

System suitability

Samples: System suitability solution, Standard solution, and Sensitivity solution

Suitability requirements

Resolution: NLT 2.0 between prochlorperazine related compound A and prochlorperazine, System suitability solution Relative standard deviation: NMT 5.0%, Standard solution

Signal-to-noise ratio: NLT 10, Sensitivity solution

Analysis

Samples: Standard solution and Sample solution

Calculate the percentage of each individual impurity in the portion of Prochlorperazine Maleate taken:

Result = (r_U/r_S) × (C_S/C_U) × (M_R1/M_R2) × (1/F) × 100

r_U = peak response of each impurity from the Sample solution

r_S = peak response of prochlorperazine from the Standard solution

C_S = concentration of USP Prochlorperazine Maleate RS in the Standard solution (mg/mL)

C_U = concentration of Prochlorperazine Maleate in the Sample solution (mg/mL)

M_R1 = molecular weight of prochlorperazine, 373.94

M_R2 = molecular weight of prochlorperazine maleate, 606.09

F = relative response factor (see Table 2)

Acceptance criteria: See Table 2. Disregard any peak below 0.05%.

Table 2

a F values are based on the response of prochlorperazine (free base).

b 2-Chloro-10-[3-(4-methylpiperazin-1-yl)propyl]-10H-phenothiazine sulfoxide.

c 10-[3-(4-Methylpiperazin-1-yl)propyl]-10H-phenothiazine.

d 4-Chloro-10-[3-(4-methylpiperazin-1-yl)propyl]-10H-phenothiazine.

e 4-Chloro-10H-phenothiazine.

f 2-Chloro-10H-phenothiazine.

5 SPECIFIC TESTS

Loss on Drying 〈731〉

Analysis: Dry under vacuum at 60° for 2 h.

Acceptance criteria: NMT 0.5%

6 ADDITIONAL REQUIREMENTS

Packaging and Storage: Preserve in tight, light-resistant containers. Store at room temperature.

USP Reference Standards 〈11〉

USP Prochlorperazine Maleate RS

USP Prochlorperazine Related Compound A RS

4-Chloro-10-[3-(4-methylpiperazin-1-yl)propyl]-10H-phenothiazine dihydrochloride.

C₂₀H₂₄ClN₃S. 2HCl 443.47
