Olopatadine Hydrochloride

This article is compiled based on the United States Pharmacopeia (USP) – 2025 Edition

Issued and maintained by the United States Pharmacopeial Convention (USP)

DOWNLOAD PDF HERE

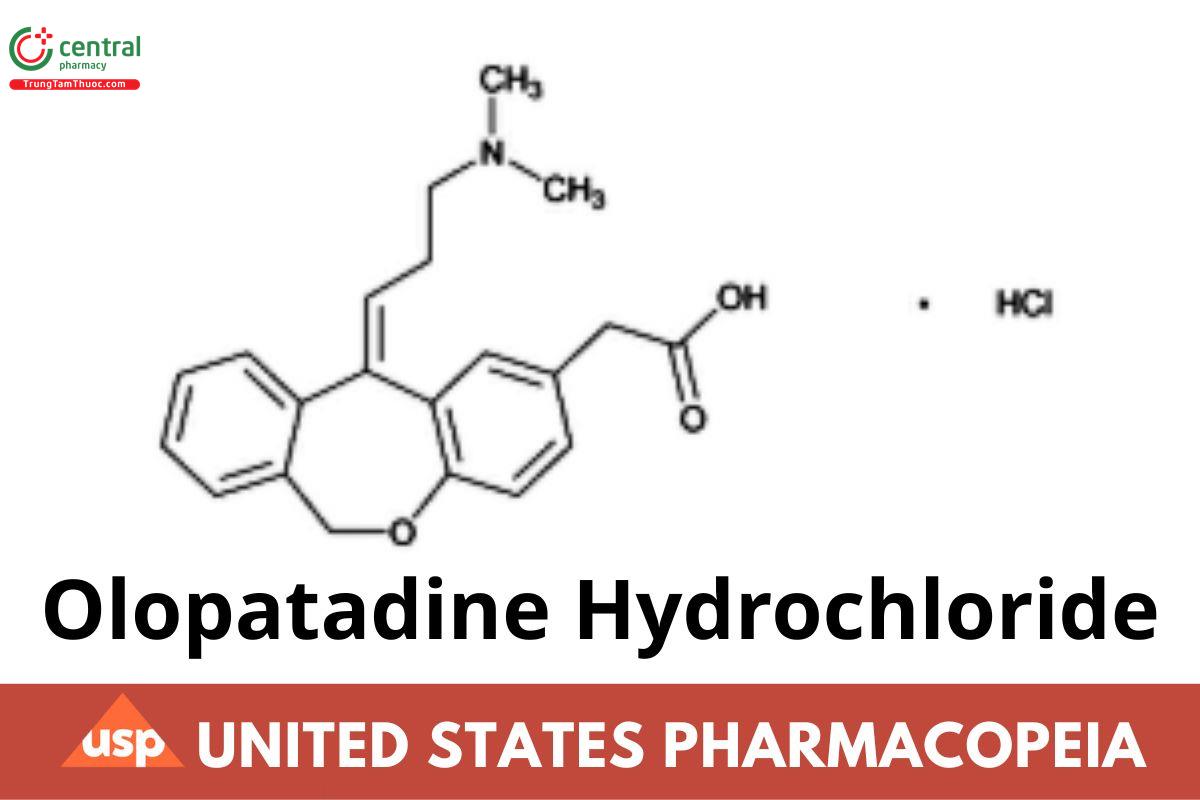

C₂₁H₂₃NO₃.HCl 373.87

Dibenz[b,e]oxepin-2-acetic acid, 11-[3-(dimethylamino)propylidene]-6,11-dihydro-, hydrochloride, (Z)-;

11-[(Z)-3-(Dimethylamino)propylidene]-6,11-dihydrodibenzo[b,e]oxepin-2-acetic acid, hydrochloride CAS RN®: 140462-76-6; UNII:

1 DEFINITION

Olopatadine Hydrochloride contains NLT 98.0% and NMT 102.0% of olopatadine hydrochloride (C₂₁H₂₃NO₃), calculated on the dried basis.

2 IDENTIFICATION

Change to read:

A. Spectroscopic Identification Tests 〈197〉, Infrared Spectroscopy: 197A or 197K (CN 1-May-2020)

B. The retention time of the major peak of the Sample solution corresponds to that of the Standard solution, as obtained in the Assay. C. Identification Tests—General 〈191〉, Chloride: Meets the requirements

3 ASSAY

Procedure

Protect all solutions containing olopatadine hydrochloride from light.

Buffer: Dissolve 13.6 g of monobasic potassium phosphate in 1 L of water, add 1 mL of triethylamine, and mix. Adjust with phosphoric acid to a pH of 3.0.

Mobile phase: Acetonitrile and Buffer (28:72)

Standard solution: 0.1 mg/mL of USP Olopatadine Hydrochloride RS in Mobile phase

Sample solution: 0.1 mg/mL of Olopatadine Hydrochloride in Mobile phase

Chromatographic system

(See Chromatography 〈621〉, System Suitability.)

Mode: LC

Detector: UV 299 nm

Column: 4.6-mm × 15-cm; 5-µm packing L7

Flow rate: 1 mL/min

Injection volume: 30 µL

System suitability

Sample: Standard solution

Suitability requirements

Tailing factor: NMT 2.0

Relative standard deviation: NMT 0.73%

Analysis

Samples: Standard solution and Sample solution

Calculate the percentage of olopatadine hydrochloride (C₂₁H₂₃NO₃) in the portion of Olopatadine Hydrochloride taken:

Result = (r_U/r_S) × (C_S/C_U) × 100

r_U = peak response from the Sample solution

r_S = peak response from the Standard solution

C_S = concentration of USP Olopatadine Hydrochloride RS in the Standard solution (mg/mL)

C_U = concentration of Olopatadine Hydrochloride in the Sample solution (mg/mL)

Acceptance criteria: 98.0%–102.0% on the dried basis

4 IMPURITIES

Residue on Ignition 〈281〉: NMT 0.1%

Organic Impurities

Protect all solutions containing olopatadine hydrochloride from light.

Mobile phase: Prepare as directed in the Assay.

System suitability solution: 0.2 mg/mL of USP Olopatadine Hydrochloride RS and 0.02 mg/mL of USP Olopatadine Related Compound B RS in Mobile phase

Sample solution: 0.2 mg/mL of Olopatadine Hydrochloride in Mobile phase

Blank solution: Mobile phase

Chromatographic system

(See Chromatography 〈621〉, System Suitability.)

Mode: LC

Detector: UV 299 nm

Column: 4.6-mm × 15-cm; 5-µm packing L7

Flow rate: 1 mL/min

Injection volume: 30 µL

Run time: At least 2.5 times the retention time of the major peak

System suitability

Sample: System suitability solution

[Note—The relative retention times for olopatadine and olopatadine related compound B are 1.0 and 1.2, respectively.] Suitability requirements

Resolution: NLT 2.0 between olopatadine and olopatadine related compound B

Relative standard deviation: NMT 2.0%, olopatadine peak

Analysis

Sample: Sample solution

Calculate the percentage of each impurity in the portion of Olopatadine Hydrochloride taken:

Result = (r_U/r_T) × (1/F) × 100

r_U = peak response of each individual impurity from the Sample solution

r_T = sum of all the peak responses from the Sample solution

F = relative response factor for each individual impurity (see Table 1)

Acceptance criteria

Individual impurities: See Table 1. Disregard any peaks corresponding to those of the Blank solution, and any peak less than 0.05%. Table 1

^a(Z)-2-{11-[3-(Dimethylamino)propylidene]-6,11-dihydrodibenzo[b,e]oxepin-2-yl}-2-hydroxyacetic acid.

^b 11-[(E)-3-(Dimethylamino)propylidene]-6,11-dihydrodibenzo[b,e]oxepin-2-acetic acid.

5 SPECIFIC TESTS

pH 〈791〉

Sample: 10 mg/mL of Olopatadine Hydrochloride in water

Acceptance criteria: 2.0–4.0

Loss on Drying 〈731〉

Analysis: Dry at 105° for 3 h.

Acceptance criteria: NMT 0.3%

6 ADDITIONAL REQUIREMENTS

Packaging and Storage: Preserve in tight, light-resistant containers and store at room temperature.

USP Reference Standards 〈11〉 USP Olopatadine Hydrochloride RS USP Olopatadine Related Compound B RS

(Z)-3-{2-(Carboxymethyl)dibenzo[b,e]oxepin-11(6H)-ylidene}-N,N-dimethylpropan-1-amine oxide.

C₂₁H₂₃NO₄ 353.41
