Carbomer 934

This article is compiled based on the United States Pharmacopeia (USP) – 2025 Edition

Issued and maintained by the United States Pharmacopeial Convention (USP)

DOWNLOAD PDF HERE

1 DEFINITION

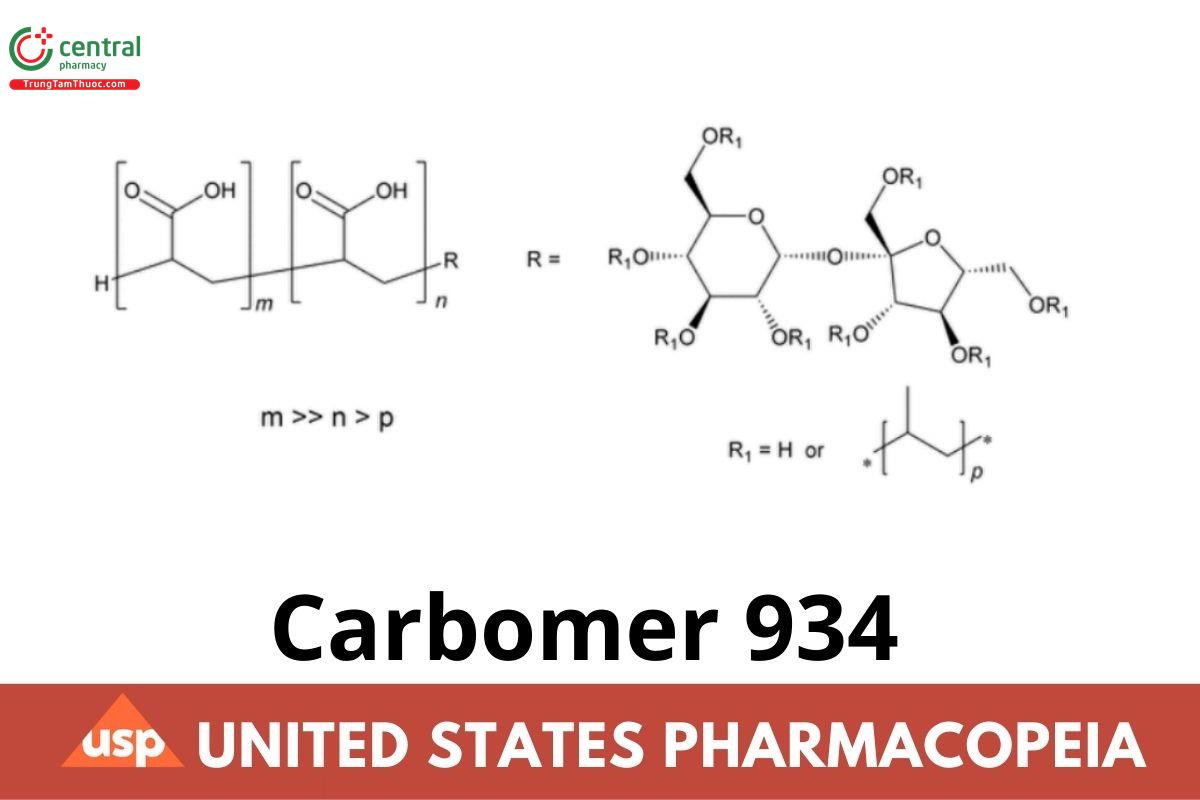

Carbomer 934 is a high molecular weight polymer of Acrylic acid cross-linked with allyl ethers of sucrose. Carbomer 934, (NF 1-May-2022) contains NLT 56.0% and NMT 68.0% of carboxylic acid (–COOH) groups, calculated on the dried basis. (NF 1-May-2022) The viscosity of a neutralized 0.5% aqueous dispersion of Carbomer 934 is between 30,500 and 39,400 mPa · s.

IDENTIFICATION

1.1 Add the following:

A. Spectroscopic Identification Tests 〈197〉, Infrared Spectroscopy: 197K or 197A. The IR absorption spectrum exhibits maxima only at the same wavelengths as those of a similar preparation of USP Carbomer Homopolymer RS, treated in the same manner. [Note—If peak shifting occurs during testing using the method found in 197A causing the test to fail, follow the method found in 197K.] (NF 1-May-2022)

1.2 Change to read:

B. (NF 1-May-2022)

Sample dispersion: 10 mg/mL

Analysis 1: To one portion of the Sample dispersion add thymol blue TS.

Acceptance criteria 1: An orange color is produced.

Analysis 2: To another portion of the Sample dispersion add cresol red TS.

Acceptance criteria 2: A yellow color is produced.

1.3 Change to read:

C. (NF 1-May-2022)

Sample dispersion: 10 mg/mL

Analysis: Adjust the Sample dispersion with 1 N sodium hydroxide to a pH of 7.5, or follow the procedure described in the test for Viscosity-Rotational Methods until neutralization is complete and the final pH of 7.3–7.8 is reached. (NF 1-May-2022)

Acceptance criteria: A very viscous gel is produced.

2 ASSAY

Change to read:

Carboxylic Acid Content

Sample: 400 mg, previously dried

Titrimetric system

(See Titrimetry 〈541〉.)

Mode: Direct titration

Electrode: Calomel–glass or silver/silver chloride (NF 1-May-2022)

Titrant: 0.25 N sodium hydroxide VS

Endpoint detection: Potentiometric

Analysis: Slowly add the Sample to 400 mL of water in an 800–1000-mL (NF 1-May-2022) beaker, while stirring continuously at about 1000 ± 10 (NF 1-May-2022) rpm, with the stirrer shaft set at the side of the beaker at an angle of 60° and with the propeller positioned near the bottom of the beaker. Continue stirring for 15 min. Turn off the stirrer and remove the stirrer shaft with the propeller from the beaker.

Scrape any sample from the beaker walls, stirrer shaft, and propeller blades with a spatula or rubber policeman into the dispersion. Allow the polymer dispersion to stand for 30 min. Transfer the beaker to a magnetic stirring device. Place an approximately 7.62-cm stirring bar into the solution, and adjust the mixer speed to obtain moderate mixing. Add 1 g of potassium chloride, (NF 1-May-2022) and titrate potentiometrically with Titrant. After each addition of Titrant allow 1 min for mixing before recording the pH.

Calculate the carboxylic acid content as a percentage of carboxylic acid groups in the portion of Carbomer 934 taken: (NF 1-May-2022)

Result = [(V × N_{A (NF 1-May-2022)} /W) × F] × 100

V = Titrant volume consumed (mL)

N_{A (NF 1-May-2022)} = actual normality of the Titrant (mEq/mL)

W = Sample weight (mg)

F = equivalency factor for the carboxylic acid (–COOH) group, 45.02 mg/mEq (NF 1-May-2022)

Acceptance criteria: 56.0%–68.0% (NF 1-May-2022)

3 IMPURITIES

3.1 Change to read

Limit of Benzene

Diluent: 166 mL/L of Dimethyl sulfoxide in water

Standard stock solution: 1.75 mg/g of benzene in dimethyl sulfoxide

Standard solution A: Transfer 50 ± 1 mg of Carbomer 934 to a 20-mL headspace vial, and add 6 mL of Diluent to the vial. Weigh the vial. Using a syringe, add 10 μL of Standard stock solution to the vial. Weigh the vial. Calculate the weight of the added Standard stock solution. Seal the vial with a Teflon-lined rubber septum and aluminum crimp cap. Shake the vial for 1 h.

Standard solution B: Transfer 50 ± 1 mg of Carbomer 934 to a 20-mL headspace vial, and add 6 mL of Diluent to the vial. Weigh the vial. Using a syringe, add 20 μL of Standard stock solution to the vial. Weigh the vial. Calculate the weight of the added Standard stock solution. Seal the vial with a Teflon-lined rubber septum and aluminum crimp cap. Shake the vial for 1 h.

Standard solution C: Transfer 50 ± 1 mg of Carbomer 934 to a 20-mL headspace vial, and add 6 mL of Diluent to the vial. Weigh the vial. Using a syringe, add 50 μL of Standard stock solution to the vial. Weigh the vial. Calculate the weight of the added Standard stock solution. Seal the vial with a Teflon-lined rubber septum and aluminum crimp cap. Shake the vial for 1 h.

Sample solution: Transfer 50 ± 1 mg of Carbomer 934 to a 20-mL headspace vial, and add 6 mL of Diluent to the vial. Seal the vial with a

Teflon-lined rubber septum and aluminum crimp cap. Shake for 1 h.

Chromatographic system

(See Chromatography 〈621〉, System Suitability.)

Mode: GC, equipped with a headspace injector

Detector: Flame ionization

Column: 0.53-mm × 30-m fused silica; coated with 3.0-μm stationary phase G43

Temperatures

Injection port: 140°

Detector: 250°

Column: See Table 1.

Table 1

Carrier gas: Helium

Flow rate: 5 mL/min (at a linear velocity of 35 cm/s programmed in constant pressure mode)

Injection volume: 1 mL (gaseous phase)

Injection type: Split, split ratio, 10:1

[Note—The following headspace conditions may be used: a vial pressure of 10 psi, a loop fill pressure (if equipped) of 7 psi, and a transfer line temperature of 105°.]

Vial temperature: The vials are maintained at a temperature of 80° for 45 min before headspace injection.

System suitability

Sample: Standard solution B

Suitability requirements

Relative standard deviation: NMT 15% from 3 injections

Analysis

Samples: Standard solution A, Standard solution B, Standard solution C, and Sample solution

The detector response factor (RF) of each Standard solution is determined by:

RF = (W_SS × C_SS )/(r_S − r_U)

W_SS= weight of the Standard stock solution in each Standard solution (g)

C_SS = concentration of benzene in Standard stock solution (mg/g)

r_S= peak area of benzene in each Standard solution

r_U= peak area of benzene in the Sample solution

Average three RF to obtain RF . Calculate the percentage of benzene in the portion of Carbomer 934 taken:

Result = [(RF_avg × r_u )/W_u ] × 100

RF_avg = average of three RF

r_u = peak area of benzene in the Sample solution

W_u = weight of Carbomer 934 in the Sample solution (mg)

(NF 1-May-2022)

Acceptance criteria: NMT 0.5%

3.2 Add the following

Limit of Acrylic Acid

Solution A: Methanol

Solution B: Dissolve 6.80 g of monobasic potassium phosphate in 300 mL of water, and dilute with water to 500 mL. Dilute 100 mL of this

solution to 1 L, and adjust with phosphoric acid to a pH of 3.0 ± 0.1. Filter and degas.

Mobile phase: See Table 2.

Table 2

Standard solution A: 2 μg/g of acrylic acid (w/w)

Standard solution B: 50 μg/g of acrylic acid (w/w)

Standard solution C: 100 μg/g of acrylic acid (w/w)

Sample solution: Transfer 100 mg of Carbomer 934 to a tared serum vial. Add water to obtain a total weight of 10 g of solution. Cap the vial and shake by mechanical means for 2 h. Add 2 drops of sodium hydroxide solution (50% w/v), and shake by hand for 15 s. Add 1.0 mL of calcium chloride solution (100 mg/mL), and shake until the gel collapses. Record the weight of all additions of water, sodium hydroxide, and calcium chloride. Centrifuge for 15 min, and use the clear supernatant.

Chromatographic system

(See Chromatography 〈621〉, System Suitability.)

Mode: LC

Detector: UV 200 nm

Column: 4.6-mm x 15-cm; 5-μm packing L1

Flow rate: See Table 2.

Injection volume: 10 μL

System suitability

Sample: Standard solution B

Suitability requirements

Relative standard deviation: NMT 5% from 3 injections

Analysis

Samples: Standard solution A, Standard solution B, Standard solution C, and Sample solution

Analyze each Standard solution and plot the peak area versus concentration. Plot should be linear with an r² equal or greater than 0.9990.

The slope of the calibration curve (area/ppm acrylic acid) is the response factor. Calculate the percentage of free acrylic acid in the portion of polymer taken:

Result (wt%) = (r_U/RF)/C_U× F × 100

r_U= peak response of acrylic acid from the Sample solution

RF = response factor [peak area/(μg/g)]

C_U = concentration of Carbomer 934 in the Sample solution (mg/g)

F = unit conversation factor, 10−3 (mg/μg)

Acceptance criteria: NMT 0.25% (NF 1-May-2022)

4 SPECIFIC TESTS

Loss on Drying 〈731〉

Analysis: Dry a sample under vacuum at 80° for 1 h.

Acceptance criteria: NMT 2.0%

Change to read:

Viscosity—Rotational Methods 〈912〉

Sample: 2.50 g of Carbomer 934, (NF 1-May-2022) dried under vacuum at 80° for 1 h

Titrimetric system

(See Titrimetry 〈541〉.)

Mode: Direct titration

Electrode: Calomel–glass or silver/silver chloride (NF 1-May-2022)

Titrant: 180 mg/mL of sodium hydroxide

Endpoint detection: pH

Analysis: Carefully add the Sample to 500 mL of water in an 800-mL (NF 1-May-2022) beaker, 1 (NF 1-May-2022) while stirring continuously at1000 ± 10 rpm, with the stirrer shaft set to the side of the beaker at an angle of 60° and with the propeller positioned near the bottom of the beaker. Allow 45–90 s for addition of the Sample at a uniform rate, being sure that loose aggregates of powder are broken up, and continue stirring at 1000 ± 10 rpm for 15 min. [Note—Proper dispersion of the carbomer resin is imperative for accurate viscosity readings.] (NF 1-May-2022) Remove the stirrer, and place the beaker containing the dispersion in a 25 ± 0.1° water bath for 30 min. Insert the stirrer to a depth necessary to ensure that air is not drawn into the dispersion, and, while stirring at 300 ± 25 (NF 1-May-2022) rpm, titrate with Titrant to a pH of 7.3–7.8. (NF 1-May-2022) Stir for 2–3 min until neutralization is complete. [Note—After neutralization, care must be taken to avoid excessively high shearing, because aggressive mixing will break the polymer chains and reduce the viscosity reading.] (NF 1-May-2022) Then determine the final pH. ² (NF 1-May-2022) If the pH is ▲below▲ (NF 1-May-2022) 7.3, raise it with additional Titrant. (NF 1-May-2022) If it is above (NF 1-May-2022) 7.8, discard the mucilage, and prepare another, using a smaller amount of Titrant (NF 1-May-2022) for titration.

Return the beaker containing the (NF 1-May-2022) neutralized mucilage to the 25 ± 0.1° (NF 1-May-2022) water bath for 1 h. (NF 1-May-2022) Perform the viscosity determination without delay to avoid slight viscosity changes that occur 75 min after neutralization.

Equip a suitable rotational viscometer with a spindle having a cylinder 1.5 cm in diameter and 0.2 cm high attached to a shaft 0.3 cm in diameter, the distance from the top of the cylinder to the lower tip of the shaft being 3.0 (NF 1-May-2022) cm.³

The spindle rotates at 20 rpm at an immersion depth of 4.9 cm. Follow the instrument manufacturer's directions to measure the apparent viscosity.

Acceptance criteria: 30,500–39,400 mPa · s

5 ADDITIONAL REQUIREMENTS

5.1 Change to read:

Packaging and Storage: Product is hygroscopic. Preserve in tight containers away from direct sources of moisture. (NF 1-May-2022)

Labeling: Label it to indicate that it is not intended for internal use. A carbomer homopolymer manufactured using benzene and complying with the unique requirements of this monograph will be oficially titled Carbomer 934 and will not be referred to as Carbomer Homopolymer.

5.2 Add the following:

USP Reference Standards 〈11〉

USP Carbomer Homopolymer RS (NF 1-May-2022)

¹ A beaker size of 600–1000 mL is ideal for this method. However, the minimum inside diameter of the beaker should be 83 mm.

² If formation of a very viscous gel is observed at a pH of 7.3–7.8, the tested material conforms to Identification C.

³ Available as an RV6 spindle from Brook field, or the equivalent.
