Alginic Acid

This article is compiled based on the United States Pharmacopeia (USP) – 2025 Edition

Issued and maintained by the United States Pharmacopeial Convention (USP)

DOWNLOAD PDF HERE

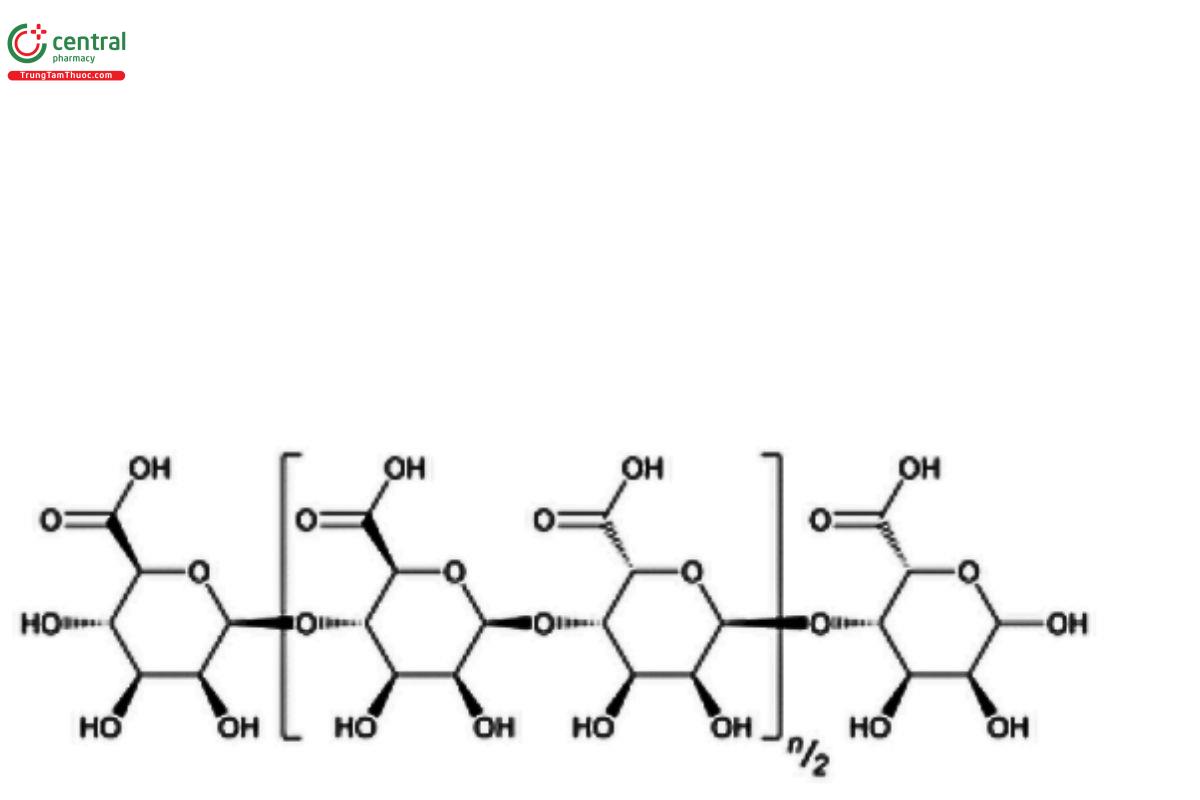

(C6H8On+2 )

Alginic acid

CAS RN®: 9005-32-7.

1 DEFINITION

Alginic Acid is a hydrophilic colloidal carbohydrate extracted with dilute alkali from various species of brown seaweeds (Phaeophyceae).

Alginic Acid is a linear, unbranched copolymer of β-d-mannuronic acid (M) and α-l-guluronic acid (G) linked to each other by 1→4 glycosidic bonds. The M and G units in the Alginic Acid may be randomly or non-randomly arrayed as heterogeneous or homogeneous sequences. The typical average molecular weight for Alginic Acid is in the range of 10,000–600,000 g/mol.

2 IDENTIFICATION

A. Spectroscopic Identification Tests 〈197〉, Infrared Spectroscopy: 197K or 197A

B.

Analysis 1: To 5 mL of a 1-in-150 solution in 0.1 N sodium hydroxide add 1 mL of calcium chloride TS.

Acceptance criteria 1: A voluminous, gelatinous precipitate is formed.

Analysis 2: To 5 mL of a 1-in-150 solution in 0.1 N sodium hydroxide add 1 mL of 4 N sulfuric acid.

Acceptance criteria 2: A heavy, gelatinous precipitate is formed.

C.

Analysis: To 5 mg in a test tube add 5 mL of water, 1 mL of a freshly prepared 1-in-100 solution of 1,3-naphthalenediol in alcohol, and 5 mL of hydrochloric acid. Heat the mixture to boiling, boil gently for 3 min, then cool to 15°. Transfer the contents of the test tube to a 30-mL separator with the aid of 5 mL of water, and extract with 15 mL of isopropyl ether.

Acceptance criteria: The isopropyl ether extract exhibits a deeper purplish hue than that from a blank, similarly prepared.

3 IMPURITIES

Delete the following:

Arsenic 〈211〉, Procedures, Method II (NF 1-May-2023)

Delete the following:

Lead 〈251〉 (NF 1-May-2023)

Add the following:

Limit of Lead and Arsenic

[Note—When water is specied as the diluent, use deionized ultra-ltered water. Use of glass volumetric asks is discouraged.] Diluent: Weigh about 3.5 g of sodium nitrate in a 1000-mL volumetric ask. Add 500 mL of water to dissolve. Add 170 mL of nitric acid, ultratrace, and mix. Cool to room temperature and dilute with water to volume.

Standard stock solution: Into a 10-mL volumetric ask, transfer 100 μL of a standard solution containing 1000 mg/L of arsenic1 and 500 μL of a standard solution containing 1000 mg/L of lead.2 Add 1–2 drops of nitric acid, ultratrace. Dilute with water to volume. Internal standard solution: Transfer 1.0 mL of a standard solution containing 10,000 mg/L of yttrium3 to a 100-mL volumetric ask. Add 1–2 drops of nitric acid, ultratrace, and dilute with water to volume. [Note—The concentration of the Internal standard solution can be adjusted if a high number of signal counts from the Internal standard solution causes an artifact.]

Calibration standard solution A: Into a separate 100-mL volumetric ask, prepare a solution containing 0.01 µg/mL of arsenic and 0.05 µg/mL of lead from the Standard stock solution. To each ask, add 100 µL of the Internal standard solution and 20 µL of a standard solution containing 1000 mg/L of gold.4 Dilute with Diluent to volume.

Calibration standard solution B: Into a separate 100-mL volumetric ask, prepare a solution containing 0.02 µg/mL of arsenic and 0.1 µg/mL of lead from the Standard stock solution. To each ask, add 100 µL of the Internal standard solution and 20 µL of a standard solution containing 1000 mg/L of gold. Dilute with Diluent to volume.

Calibration standard solution C: Into a separate 100-mL volumetric ask, prepare a solution containing 0.04 µg/mL of arsenic and 0.2 µg/mL of lead from the Standard stock solution. To each ask, add 100 µL of the Internal standard solution and 20 µL of a standard solution containing 1000 mg/L of gold. Dilute with Diluent to volume.

Blank solution: In a 100-mL volumetric ask, add 100 μL of the Internal standard solution. Add 20 μL of a standard solution containing 1000 mg/L of gold. Dilute with Diluent to volume, and mix well.

Sample solution: Weigh about 0.50 g of Alginic Acid in a Teon pressure vessel. Add 10 mL of nitric acid, ultratrace. Add 10 μL of a standard solution containing 1000 mg/L of gold. Screw the cap of the pressure vessel and commence digestion in a microwave digester per the program given in Table 1.

Once completed, allow it to cool. Rinse the vessel using water and transfer the rinsate to a separate 50-mL volumetric ask. Add 50 μL of the Internal standard solution. Dilute with water to volume, and mix well.

Instrumental conditions

(See Plasma Spectrochemistry 〈730〉.)

Mode: ICP–OES

Emission wavelengths: 189.042 nm for arsenic, 220.353 nm for lead, and 224.306 nm for yttrium. Set the sample read time and other instrument parameters as appropriate or as recommended by the instrument manufacturer.

System suitability

Samples: Calibration standard solutions A–C, Blank solution, and Sample solution

Suitability requirements

[Note—Instrument performance must be veried to conform to the manufacturer's specications for resolution and sensitivity. Before analyzing samples, the instrument must pass a suitable performance check. Additional system suitability parameters can be used per the instrument manufacturer's recommendations, along with the internal quality requirements.]

Correlation coecient: NLT 0.999, determined from the Calibration curve constructed in the Analysis

Analysis

Samples: Calibration standard solutions A–C, Blank solution, and Sample solution. [Note—The following analysis is described for one type of ICP–OES instrument. If a different ICP–OES instrument is used, follow the instrument manufacturer's recommendations for operation.] Take 3 replicate scans with the integration set as recommended by the instrument manufacturer. Follow the instrument manufacturer's recommendations for delivering the sample. Flush the samples through the system before analysis. Program a read delay into the sampling routine to allow for uid ow equilibration after the high-speed ush, before the rst analytical read of the sample. Between samples, wash the pumping system by ushing the Blank solution. Analyze the Sample solution on the ICP.

Calibration curve: Generate the calibration curve using the Blank solution and Calibration standard solutions A–C as follows. Scan the Internal standard solution while running the Blank solution to measure the intensity of the yttrium emission. Hold this value constant throughout the remainder of the test. Separately scan the Blank solution, Calibration standard solution, and Internal standard solution. Normalize the yttrium intensity to the value of the Internal standard solution. Apply this normalization factor to the intensity of the respective elements, which is then referred to as the corrected intensity. Obtain the concentration of arsenic and lead (C), in μg/mL, in the Sample solution through the calibration curve. Plot the corrected intensity versus the known concentrations, in μg/mL, of arsenic and lead.

Calculate the content in μg/g (ppm) of arsenic and lead in the portion of Alginic Acid taken:

Result = (C × V)/W

C = concentration of arsenic/lead in the Sample solution obtained from the Calibration curve (μg/mL)

V = volume of the Sample solution (mL)

W = weight of Alginic Acid taken to prepare the Sample solution (g)

Acceptance criteria: NMT 3 μg/g of arsenic and 10 μg/g of lead (NF 1-May-2023)

4 SPECIFIC TESTS

Microbial Enumeration Tests 〈61〉 and Tests for Specified Microorganisms 〈62〉: The total aerobic microbial count does not exceed 2 × 102 cfu/g. The tests for Salmonella species and Escherichia coli are negative.

pH 〈791〉: 1.5–3.5, in a 3-in-100 dispersion in water

Loss on Drying 〈731〉

Analysis: Dry at 105° for 4 h.

Acceptance criteria: NMT 15.0%

Articles of Botanical Origin 〈561〉, Methods of Analysis, Total Ash

Sample: 4 g of Alginic Acid

Analysis: Proceed as directed in the chapter, carefully igniting the Sample in a tared platinum dish, until the residue is thoroughly carbonized (5 min). Then ignite in a mue furnace at a temperature of 800 ± 25° until the carbon is completely burned off (20–35 min). Acceptance criteria: NMT 4.0% of ash

Fats and Fixed Oils 〈401〉, Procedures, Acid Value

Sample: 1 g of Alginic Acid

Analysis: Suspend the Sample in a mixture of 50 mL of water and 30.0 mL of calcium acetate solution (11 in 250). Shake thoroughly, allow the mixture to stand for 1 h, and add phenolphthalein TS. Titrate the liberated acetic acid with 0.1 N sodium hydroxide VS.

Perform a blank determination, and calculate the Acid Value:

Result = [(V_S − V_B ) × N × F]/W

V_S = volume of 0.1 N sodium hydroxide VS consumed in the titration of the Sample (mL)

V_B = volume of 0.1 N sodium hydroxide VS consumed in the titration of the blank (mL)

N = normality of sodium hydroxide VS (mEq/mL)

F = equivalency factor of potassium hydroxide, 56.11 (mg/mEq)

W = weight of Alginic Acid taken (g)

Acceptance criteria: NLT 230 on the dried basis.

5 ADDITIONAL REQUIREMENTS

Packaging and Storage: Preserve in well-closed containers.

USP Reference Standards 〈11〉

USP Alginic Acid RS

1 Arsenic ICP standard solutions are commercially available. A suitable ICP standard is available from LGC (www.lgcstandards.com) or Millipore Sigma (www.sigmaaldrich.com).

2 Lead ICP standard solutions are commercially available. A suitable ICP standard is available from LGC (www.lgcstandards.com) or Millipore Sigma (www.sigmaaldrich.com).

3 Yttrium ICP standard solutions are commercially available. A suitable ICP standard is available from LGC (www.lgcstandards.com) or Millipore Sigma (www.sigmaaldrich.com).

4 Gold standard solutions are commercially available. A suitable ICP standard is available from LGC (www.lgcstandards.com) or Millipore Sigma (www.sigmaaldrich.com).
